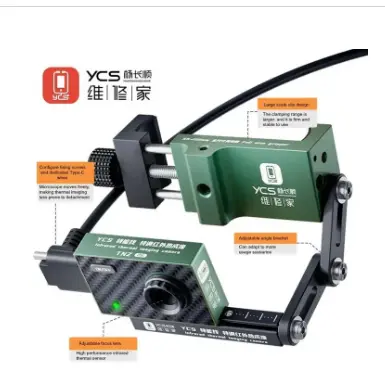

The YCS MINI Microscopic Thermal Imaging Camera is a compact, high-precision diagnostic tool specifically engineered for motherboard repair technicians, micro-soldering specialists, and electronics service centers . This specialized camera attaches to trinocular microscopes, transforming a standard inspection station into a powerful thermal imaging system capable of instantly identifying short circuits, overheating components, and power distribution anomalies on printed circuit boards .
Key Features
Microscope Integration Specifically for Trinocular Microscopes – Designed to mount directly onto the camera port of a trinocular microscope, enabling simultaneous visual and thermal inspection; eliminates the need for a separate thermal camera stand and integrates seamlessly into existing repair workflows
Adjustable Focus / Variable Focal Length – Features customizable focal length adjustment, allowing technicians to zoom in on specific ICs or obtain a wider board overview; adapts to different working distances and magnification levels, ensuring clear thermal imaging regardless of PCB size
Rapid Fault Location & Micro-Short Detection – Instantly identifies the specific failing component (capacitor, MOSFET, power IC, BGA chip) by visualizing temperature differences as small as 0.1°C; significantly reduces diagnostic time compared to multimeter probing or alcohol evaporation methods
Compact Metal Body Construction – Built with a durable metal housing that withstands the demands of daily professional use; the compact form factor adds minimal weight to the microscope assembly, preserving ergonomic balance during extended work sessions
Plug-and-Play Connectivity – Connects directly to an external monitor or PC via standard interfaces (HDMI/USB); provides real-time thermal video output for live analysis, allowing technicians to observe heat development as power is applied to the board
Wide Compatibility Across Devices – Effectively diagnoses motherboards from smartphones (iPhone, Samsung, Huawei, Xiaomi), tablets, laptops (MacBook, Dell, Lenovo), gaming consoles (PlayStation, Xbox), and other compact electronics where traditional thermal cameras lack sufficient magnification
Application in Mobile Phone Maintenance – Specifically optimized for detecting short circuits on multi-layer smartphone boards, including power rail shorts (VCC Main, VDD) and CPU/NAND memory faults that are invisible to the naked eye
